Edge AI Lab: On-Device Gemma from Zero to Three Engines

Today I shipped Edge AI Lab — a macOS app that runs Gemma 4 models entirely on-device using LiteRT-LM. No API keys, no cloud round-trips, no "demo mode." E2B Standard hits 100.7 tok/s on M4 Max with Metal, E4B Web lands at 53.5 tok/s, and the 12B Dense model runs at 0.57 tok/s (functional but honest about it — that's 12 billion parameters on a laptop GPU). The app includes a model gallery, tool calling with 6 built-in tools, thinking mode with collapsible <think> blocks, and a benchmark bar showing decode speed, TTFT, memory deltas, and thermal state. Three weeks from first commit to a real app with real screenshots replacing the AI-generated placeholders.

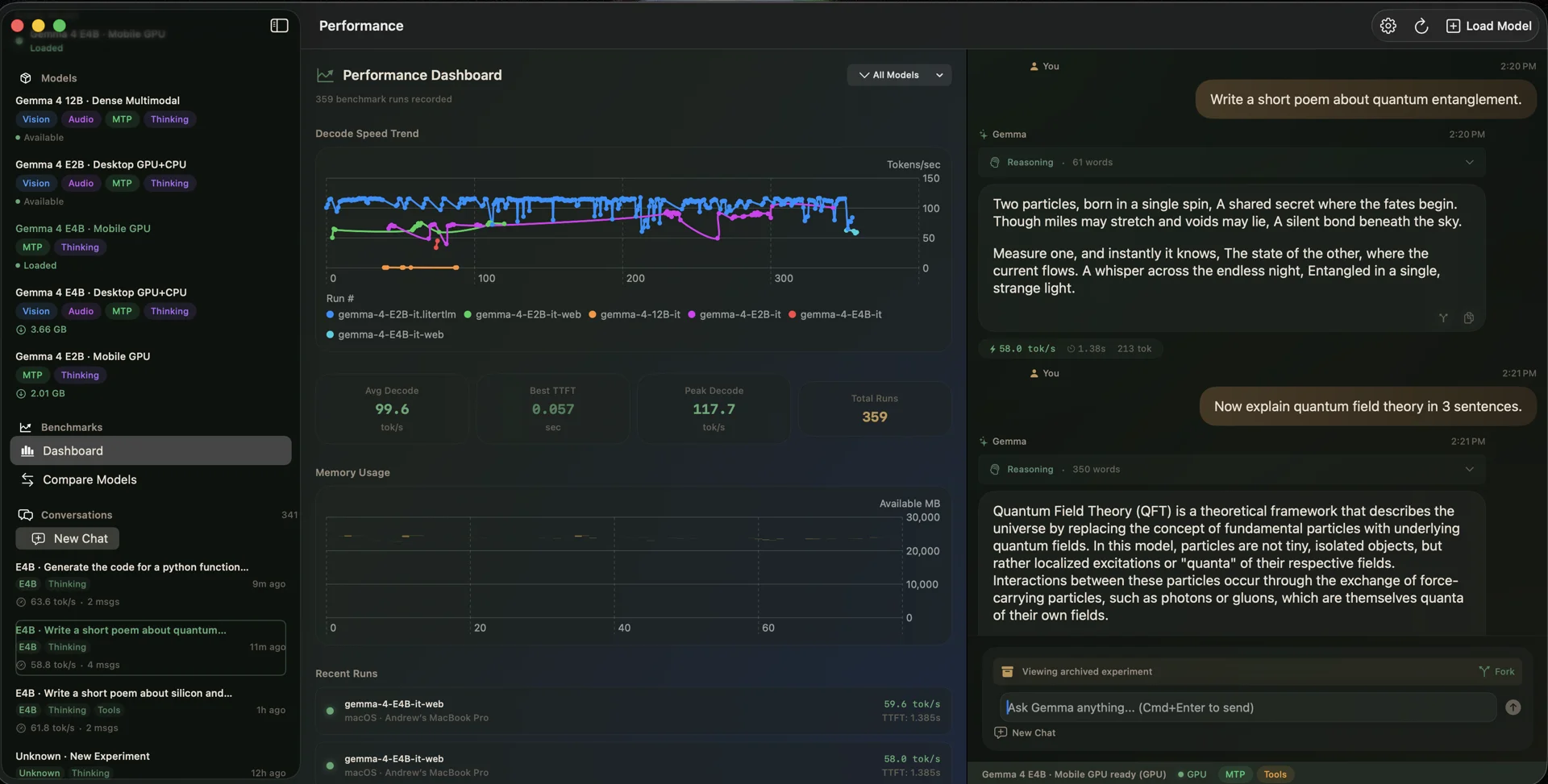

Added shareable benchmark cards — run a model, get a card you can post anywhere. The idea is simple: GeekBench lets you share CPU scores with a link. Why can't on-device LLM benchmarks work the same way? Each card captures decode speed, TTFT, prefill rate, P95 latency, model name, and device info in a format that's useful whether you're posting to X or dropping into a GitHub issue. Also stood up a 4-job CI pipeline with automated benchmark runs. 102 Swift source files, 123 test files. The test count is already absurd for a v1.0 and I love it.

Overhauled the download infrastructure with background URLSessions, a download queue, and a proper state machine. Models are big — the 12B Dense is 6.1 GB. You can't just fire a URLSession.shared download and pray. Background sessions survive app suspension, the queue manages concurrent downloads without thrashing bandwidth, and the state machine handles queued/downloading/paused/completed/failed transitions cleanly. Also added an AppDelegate for background download session events and iOS push notifications when downloads complete. The mobile model hub now shows queued and paused states properly — small detail, but it's the difference between "is this thing still downloading?" and knowing exactly where you stand.

Edge AI Lab now runs three inference backends: LiteRT-LM, MLX, and GGUF (via llama.cpp). Each engine has an adapter behind InstrumentedEngineProtocol, so the rest of the app — conversation UI, benchmarks, eval runner, tool calling — doesn't care which backend is active. LiteRT-LM is the original. MLX brings Apple's ML framework with Metal-native compute. GGUF opens up the llama.cpp ecosystem with quantized models. Same model, three ways to run it, all on-device. The protocol-based DI means the entire test suite works against mock engines too — no real model needed for CI.

Spent a session studying Apple's Liquid Glass design language and asking a pointed question: why build this at all if it looks like every other local inference app? LM Studio, Ollama, Jan — they all have the same aesthetic: dark sidebar, chat window, settings panel. Functional but forgettable. The idea behind Edge AI Lab's visual identity was different: make local LLMs feel like native, premium system features. Not a developer tool wearing a tuxedo — an actual macOS citizen with a curated "Dark Forest" color palette, per-capability SF Symbol iconography, and transitions that respect the OS conventions. The design system isn't decoration. It's the argument that on-device AI deserves better than a terminal in a window.

Got llama.cpp compiling into a universal XCFramework that supports both macOS and iOS — and the journey there was not straightforward. The sticking point was Metal shader compilation: the paths differ between iOS and macOS targets, and the build system was silently picking the wrong one for cross-compilation. This was the milestone that answered the fundamental question: will this run on-device across both platforms? Yes. Yes it will. With the GGUF engine wrapped behind InstrumentedEngineProtocol, the rest of the app doesn't know or care that there's a C++ inference runtime underneath — it's just another engine adapter that speaks Swift.

Ran a full design system audit and found the "Tools" badge was rendering in two completely different colors across the app — amber in 14 places, teal in 5. The initial suspicion was a status color split between cyan and green dots, but a deep dive revealed those were actually the exact same RGB value. The real problem was the badge inconsistency — toolCall (amber) and badgeTools (teal) both meant "tools" but looked nothing alike. Fixed it by restructuring the sidebar into three parallel sections (Models / Tools / Experiments), moving "New Experiment" to the section header, and replacing heavy pill badges with plain text and per-capability colored SF Symbol icons. Filled vs. open circles now indicate active vs. available model states. Small visual cleanup, massive consistency improvement.

Built the tool calling infrastructure — 6 built-in tools that Gemma can invoke autonomously during conversation. Calculator, date/time, device info, unit converter, text analyzer, system health — all running entirely on-device with zero network access. The model decides when to call them based on conversation context. But the bigger moment was the vision: what if we could let the models interact with the OS while running locally? This session also laid the groundwork for MCP server support, letting external tools connect via stdio JSON-RPC. Agent mode with fuzzy termination, retry logic, and structured error classification came later, but this was the session where the on-device model stopped being a chatbot and started being an instrument.

Added @Environment(\.accessibilityReduceMotion) to 4 perpetual animations so the app respects the user's preference. Any animation that loops indefinitely — loading spinners, pulsing indicators — now falls back to static visuals when Reduce Motion is enabled. While in there, found 10 occurrences of 3 duplicated transition patterns scattered across the codebase with no semantic naming. Consolidated them into AppTransition tokens. Created AppAnimation.micro for inline animations. Fixed typography violations. This is the kind of work that doesn't ship a feature but makes every feature better — and it's the kind of thing you have to actively choose to do, because nobody asks for it.

MLX inference was crawling at 1.8–9.1 tok/s. The fix was one word in Project.swift: .release. Both app schemes were hardcoded to .debug, which meant SPM packages — including mlx-swift — compiled at -O0 with ~400 C++ assert() calls in hot paths. GGUF and LiteRT-LM were completely unaffected because they use precompiled C/C++ frameworks that ignore the scheme's optimization level. Created a new "Edge AI Lab (Release)" scheme, rebuilt, and MLX jumped to 116.2 tok/s. That's a 12.8× improvement from changing a build configuration. The initial 116 tok/s reading looked like an outlier — steady-state settled at 56–63 tok/s, which is still the fastest engine in the app. Three hours of profiling to find a one-line root cause. Classic.

Researched the HuggingFace Hub API and realized we'd been overcomplicating model discovery. The original approach was parsing model card HTML and guessing file structures. Turns out the API gives you everything: GGUF shapes, file sizes, quantization info, and sibling file listings. Combined with the new ModelCapabilityProfile architecture, the app can now dynamically build its model registry from Hub API responses instead of maintaining a hardcoded catalog. This is what makes the "Paste & Go" URL import work — paste a HuggingFace URL, the app infers capabilities from the API response, downloads, and you're running inference. No manual configuration.

Bootstrapped the evaluation framework — 4 built-in suites (Math, Tool Calling, Reasoning, Multimodal), custom suite editor, batch "Run All" mode with time estimation. This was the session where the ModelCapabilityProfile migration paid off. The old ModelMetadata was a flat struct that knew models by name. The new system knows what models can do — which suites they can run, whether they support vision input, what their context limits are. The eval runner uses this to skip incompatible suites automatically instead of crashing on large prompts. Now we can benchmark exactly how these models degrade at high quantization levels, right on the metal. Not synthetic cloud benchmarks — real hardware, real thermal throttling, real numbers.

Migrated the entire model system from ModelMetadata/ModelRegistry to ModelCapabilityProfile/KnownModelCatalog. The old system was a flat registry that knew about models by name. The new system describes what models can do — which backends they support, whether they handle vision or audio, their memory requirements, context window sizes. 11 test files migrated, every reference to the old types replaced. The test count crossed 2,000 during this push. That number isn't a vanity metric — it's what lets me refactor core types without holding my breath. Shipped alongside a llama.cpp bump (b9929 → b10076) and mlx-swift-lm dependency advance. The model layer is now ready for whatever Gemma ships next.

Explored whether we could bypass llama.cpp entirely and compile straight via mlx-swift for zero-overhead Metal inference. The CudaBuild plugin validation failure in mlx-swift 0.31.6 was the trigger — if the MLX dependency is fragile, is it worth the complexity? The answer turned out to be nuanced: MLX is the fastest engine when compiled in Release (after the debug scheme discovery), but llama.cpp is the most portable and has the widest model format support. Both stay. The vision isn't picking a winner — it's giving the user three backends and letting the benchmark numbers speak for themselves. That's the whole point of Edge AI Lab: not opinions about which runtime is best, but reproducible data on your actual hardware.
